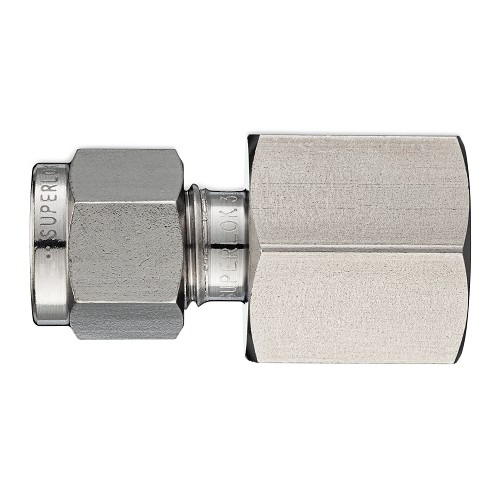

Compression Tube x Female NPT (SFC)
- Compression Tube x Female NPT Fitting
- Applications: Compression, Cryogenic, Gas, Instrumentation, Vacuum
- Available in 316 Stainless Steel
Compression Tube by Female NPT Adapter Fitting
SUPERLOK Tube fittings are designed and manufactured to be interchangeable with other Tube Fittings manufactured by other industry leading manufacturers. When required compatibility testing can be performed by an independent third party and the reports can be provided.
Compression Tube x Female NPT Fitting Dimensions
| Part No. | Tube OD D
(inches) |
T
(NPT) |
d Min
(mm) |
Width Across Flat | A | B | I | L | |
|---|---|---|---|---|---|---|---|---|---|
| h (inch) | H (inch) | ||||||||
| SFC-1-1N | 1/16 | 1/16 | 1.27 | 5/16 | 5/16 | 8.63 | 10.92 | 20.00 | 23.83 |
| SFC-1-2N | 1/16 | 1/8 | 1.27 | 7/16 | 7/16 | 8.63 | 10.92 | 22.35 | 26.23 |
| SFC-2-2N | 1/8 | 1/8 | 2.28 | 7/16 | 7/16 | 12.70 | 15.24 | 23.87 | 30.48 |
| SFC-2-4N | 1/8 | 1/4 | 2.28 | 9/16 | 7/16 | 12.70 | 15.24 | 28.95 | 35.56 |
| SFC-2-6N | 1/8 | 3/8 | 2.28 | 11/16 | 7/16 | 12.70 | 15.24 | 29.21 | 35.81 |
| SFC-2-8N | 1/8 | 1/2 | 2.28 | 7/8 | 7/16 | 12.70 | 15.24 | 35.56 | 42.16 |
| SFC-3-2N | 3/16 | 1/8 | 3.04 | 7/16 | 1/2 | 13.71 | 16.00 | 24.63 | 31.24 |
| SFC-3-4N | 3/16 | 1/4 | 3.04 | 9/16 | 1/2 | 13.71 | 16.00 | 29.71 | 36.32 |
| SFC-4-2N | 1/4 | 1/8 | 4.82 | 1/2 | 9/16 | 15.24 | 17.78 | 25.40 | 32.76 |
| SFC-4-4N | 1/4 | 1/4 | 4.82 | 9/16 | 9/16 | 15.24 | 17.78 | 30.48 | 37.84 |
| SFC-4-6N | 1/4 | 3/8 | 4.82 | 11/16 | 9/16 | 15.24 | 17.78 | 30.98 | 38.35 |
| SFC-4-8N | 1/4 | 1/2 | 4.82 | 7/8 | 9/16 | 15.24 | 17.78 | 37.33 | 44.70 |
| SFC-4-12N | 1/4 | 3/4 | 4.82 | 1-1/16 | 9/16 | 15.24 | 17.78 | 38.86 | 46.22 |
| SFC-5-2N | 5/16 | 1/8 | 4.82 | 9/16 | 5/8 | 16.25 | 18.54 | 26.67 | 34.03 |
| SFC-5-4N | 5/16 | 1/4 | 6.35 | 9/16 | 5/8 | 16.25 | 18.54 | 31.24 | 38.60 |
| SFC-5-6N | 5/16 | 3/8 | 6.35 | 11/16 | 5/8 | 16.25 | 18.54 | 31.75 | 39.11 |
| SFC-6-2N | 3/8 | 1/8 | 4.82 | 5/8 | 11/16 | 16.76 | 19.30 | 27.94 | 35.30 |
| SFC-6-4N | 3/8 | 1/4 | 7.11 | 5/8 | 11/16 | 16.76 | 19.30 | 32.51 | 39.87 |
| SFC-6-6N | 3/8 | 3/8 | 7.11 | 11/16 | 11/16 | 16.76 | 19.30 | 32.51 | 39.87 |
| SFC-6-8N | 3/8 | 1/2 | 7.11 | 7/8 | 11/16 | 16.76 | 19.30 | 38.86 | 46.22 |
| SFC-6-12N | 3/8 | 3/4 | 7.11 | 1-1/16 | 11/16 | 16.76 | 19.30 | 40.38 | 47.75 |
| SFC-8-2N | 1/2 | 1/8 | 4.82 | 13/16 | 7/8 | 22.86 | 21.84 | 28.70 | 38.86 |
| SFC-8-4N | 1/2 | 1/4 | 7.11 | 13/16 | 7/8 | 22.86 | 21.84 | 33.27 | 43.43 |
| SFC-8-6N | 1/2 | 3/8 | 9.65 | 13/16 | 7/8 | 22.86 | 21.84 | 33.27 | 43.43 |
| SFC-8-8N | 1/2 | 1/2 | 10.41 | 7/8 | 7/8 | 22.86 | 21.84 | 38.86 | 49.02 |
| SFC-8-12N | 1/2 | 3/4 | 10.41 | 1-1/16 | 7/8 | 22.86 | 21.84 | 40.38 | 50.54 |
| SFC-8-16N | 1/2 | 1 | 10.41 | 1-3/8 | 7/8 | 22.86 | 21.84 | 46.99 | 57.15 |
| SFC-10-6N | 5/8 | 3/8 | 9.65 | 15/16 | 1 | 24.38 | 21.84 | 34.03 | 44.19 |
| SFC-10-8N | 5/8 | 1/2 | 11.93 | 15/16 | 1 | 24.38 | 21.84 | 38.86 | 49.02 |
| SFC-10-12N | 5/8 | 3/4 | 12.70 | 1-1/16 | 1 | 24.38 | 21.84 | 40.38 | 50.54 |
| SFC-12-8N | 3/4 | 1/2 | 11.93 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 40.38 | 50.54 |
| SFC-12-12N | 3/4 | 3/4 | 15.74 | 1-1/16 | 1-1/8 | 24.38 | 21.84 | 40.38 | 50.54 |
| SFC-12-16N | 3/4 | 1 | 15.74 | 1-3/8 | 1-1/8 | 24.38 | 21.84 | 46.99 | 57.15 |
| SFC-14-12N | 7/8 | 3/4 | 15.74 | 1-3/16 | 1-1/4 | 25.90 | 21.84 | 40.38 | 50.54 |
| SFC-14-16N | 7/8 | 1 | 18.28 | 1-3/8 | 1-1/4 | 25.90 | 21.84 | 46.99 | 57.15 |
| SFC-16-8N | 1 | 1/2 | 11.93 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 45.21 | 57.40 |
| SFC-16-12N | 1 | 3/4 | 15.74 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 45.21 | 57.40 |
| SFC-16-16N | 1 | 1 | 22.35 | 1-3/8 | 1-1/2 | 31.24 | 26.41 | 50.03 | 62.23 |
| SFC-20-16N | 1-1/4 | 1 | 22.35 | 1-3/4 | 1-7/8 | 41.15 | 38.86 | 55.12 | 77.22 |
| SFC-20-20N | 1-1/4 | 1-1/4 | 27.69 | 1-3/4 | 1-7/8 | 41.15 | 38.86 | 55.12 | 77.22 |
| SFC-24-24N | 1-1/2 | 1-1/2 | 34.04 | 2-1/8 | 2-1/4 | 50.04 | 45.21 | 61.72 | 88.90 |
| SFC-32-32N | 2 | 2 | 45.97 | 2-3/4 | 3 | 67.56 | 62.74 | 76.20 | 113.54 |
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| SFC-10-12N-S316 | 5/8″ Compression Tube x 3/4″ Female NPT |
Request Line Drawing |
| SFC-10-16N-S316 | 5/8″ Compression Tube x 1″ Female NPT |
Request Line Drawing |
| SFC-10-8N-S316 | 5/8″ Compression Tube x 1/2″ Female NPT |
Request Line Drawing |
| SFC-12-12N-S316 | 3/4″ Compression Tube x 3/4″ Female NPT |
Request Line Drawing |
| SFC-12-8N-S316 | 3/4″ Compression Tube x 1/2″ Female NPT |
Request Line Drawing |
| SFC-16-12N-S316 | 1″ Compression Tube x 3/4″ Female NPT |
Request Line Drawing |
| SFC-16-16N-S316 | 1″ Compression Tube x 1″ Female NPT |
Request Line Drawing |
| SFC-16-8N-S316 | 1″ Compression Tube x 1/2″ Female NPT |
Request Line Drawing |
| SFC-2-2N-S316 | 1/8″ Compression Tube x 1/8″ Female NPT |
Request Line Drawing |
| SFC-2-4N-S316 | 1/8″ Compression Tube x 1/4″ Female NPT |
Request Line Drawing |
| SFC-4-2N-S316 | 1/4″ Compression Tube x 1/8″ Female NPT |
Request Line Drawing |
| SFC-4-6N-S316 | 1/4″ Compression Tube x 3/8″ Female NPT |
Request Line Drawing |
| SFC-4-8N-S316 | 1/4″ Compression Tube x 1/2″ Female NPT |
Request Line Drawing |
| SFC-4N-S316 | 1/4″ Compression Tube x 1/4″ Female NPT |
Request Line Drawing |
| SFC-6-12N-S316 | 3/8″ Compression Tube x 3/4″ Female NPT |
Request Line Drawing |
| SFC-6-16N-S316 | 3/8″ Compression Tube x 1″ Female NPT |
Request Line Drawing |
| SFC-6-2N-S316 | 3/8″ Compression Tube x 1/8″ Female NPT |
Request Line Drawing |
| SFC-6-4N-S316 | 3/8″ Compression Tube x 1/4″ Female NPT |
Request Line Drawing |
| SFC-6-6N-S316 | 3/8″ Compression Tube x 3/8″ Female NPT |
Request Line Drawing |
| SFC-6-8N-S316 | 3/8″ Compression Tube x 1/2″ Female NPT |
Request Line Drawing |
| SFC-8-12N-S316 | 1/2″ Compression Tube x 3/4″ Female NPT |
Request Line Drawing |
| SFC-8-4N-S316 | 1/2″ Compression Tube x 1/4″ Female NPT |
Request Line Drawing |
| SFC-8-6N-S316 | 1/2″ Compression Tube x 3/8″ Female NPT |
Request Line Drawing |
| SFC-8-8N-S316 | 1/2″ Compression Tube x 1/2″ Female NPT |
Request Line Drawing |
