Compression Tube Male NPT Adapter

Compression Tube x Male NPT (SMC)

  • Compression Tube x Male NPT Fitting
  • Applications: Compression, Cryogenic, Gas, Instrumentation, Vacuum
  • Compatible with Swagelock Fittings
  • Available in 316 Stainless Steel
Quantity - +

Compression Tube by Male NPT Adapter Fitting

SUPERLOK Tube fittings are designed and manufactured to be interchangeable with other Tube Fittings manufactured by other industry leading manufacturers. When required compatibility testing can be performed by an independent third party and the reports can be provided.

Compression Tube x Male NPT Fitting Dimensions

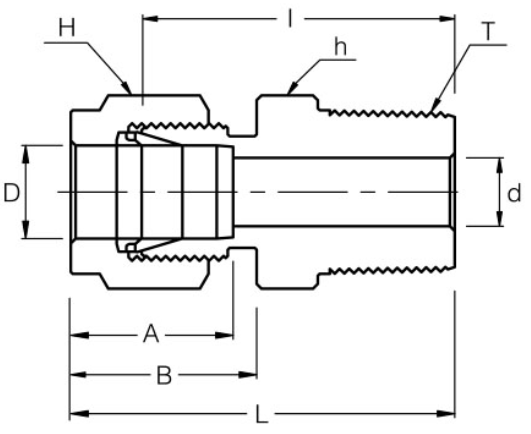

Compression Tube Male NPT Adapter Dimensions



Part No. Tube OD D

(inches)

 T

(NPT)

 d Min

(mm)

 Width Across Flat A B I L
h (inch) H (inch)
SMC-1-1N 1/16 1/16 1.27 5/16 5/16 8.63 10.92 20.00 23.83
SMC-1-2N 1/16 1/8 1.27 7/16 7/16 8.63 10.92 22.35 26.23
SMC-2-2N 1/8 1/8 2.28 7/16 7/16 12.70 15.24 23.87 30.48
SMC-2-4N 1/8 1/4 2.28 9/16 7/16 12.70 15.24 28.95 35.56
SMC-2-6N 1/8 3/8 2.28 11/16 7/16 12.70 15.24 29.21 35.81
SMC-2-8N 1/8 1/2 2.28 7/8 7/16 12.70 15.24 35.56 42.16
SMC-3-2N 3/16 1/8 3.04 7/16 1/2 13.71 16.00 24.63 31.24
SMC-3-4N 3/16 1/4 3.04 9/16 1/2 13.71 16.00 29.71 36.32
SMC-4-2N 1/4 1/8 4.82 1/2 9/16 15.24 17.78 25.40 32.76
SMC-4-4N 1/4 1/4 4.82 9/16 9/16 15.24 17.78 30.48 37.84
SMC-4-6N 1/4 3/8 4.82 11/16 9/16 15.24 17.78 30.98 38.35
SMC-4-8N 1/4 1/2 4.82 7/8 9/16 15.24 17.78 37.33 44.70
SMC-4-12N 1/4 3/4 4.82 1-1/16 9/16 15.24 17.78 38.86 46.22
SMC-5-2N 5/16 1/8 4.82 9/16 5/8 16.25 18.54 26.67 34.03
SMC-5-4N 5/16 1/4 6.35 9/16 5/8 16.25 18.54 31.24 38.60
SMC-5-6N 5/16 3/8 6.35 11/16 5/8 16.25 18.54 31.75 39.11
SMC-6-2N 3/8 1/8 4.82 5/8 11/16 16.76 19.30 27.94 35.30
SMC-6-4N 3/8 1/4 7.11 5/8 11/16 16.76 19.30 32.51 39.87
SMC-6-6N 3/8 3/8 7.11 11/16 11/16 16.76 19.30 32.51 39.87
SMC-6-8N 3/8 1/2 7.11 7/8 11/16 16.76 19.30 38.86 46.22
SMC-6-12N 3/8 3/4 7.11 1-1/16 11/16 16.76 19.30 40.38 47.75
SMC-8-2N 1/2 1/8 4.82 13/16 7/8 22.86 21.84 28.70 38.86
SMC-8-4N 1/2 1/4 7.11 13/16 7/8 22.86 21.84 33.27 43.43
SMC-8-6N 1/2 3/8 9.65 13/16 7/8 22.86 21.84 33.27 43.43
SMC-8-8N 1/2 1/2 10.41 7/8 7/8 22.86 21.84 38.86 49.02
SMC-8-12N 1/2 3/4 10.41 1-1/16 7/8 22.86 21.84 40.38 50.54
SMC-8-16N 1/2 1 10.41 1-3/8 7/8 22.86 21.84 46.99 57.15
SMC-10-6N 5/8 3/8 9.65 15/16 1 24.38 21.84 34.03 44.19
SMC-10-8N 5/8 1/2 11.93 15/16 1 24.38 21.84 38.86 49.02
SMC-10-12N 5/8 3/4 12.70 1-1/16 1 24.38 21.84 40.38 50.54
SMC-12-8N 3/4 1/2 11.93 1-1/16 1-1/8 24.38 21.84 40.38 50.54
SMC-12-12N 3/4 3/4 15.74 1-1/16 1-1/8 24.38 21.84 40.38 50.54
SMC-12-16N 3/4 1 15.74 1-3/8 1-1/8 24.38 21.84 46.99 57.15
SMC-14-12N 7/8 3/4 15.74 1-3/16 1-1/4 25.90 21.84 40.38 50.54
SMC-14-16N 7/8 1 18.28 1-3/8 1-1/4 25.90 21.84 46.99 57.15
SMC-16-8N 1 1/2 11.93 1-3/8 1-1/2 31.24 26.41 45.21 57.40
SMC-16-12N 1 3/4 15.74 1-3/8 1-1/2 31.24 26.41 45.21 57.40
SMC-16-16N 1 1 22.35 1-3/8 1-1/2 31.24 26.41 50.03 62.23
SMC-20-16N 1-1/4 1 22.35 1-3/4 1-7/8 41.15 38.86 55.12 77.22
SMC-20-20N 1-1/4 1-1/4 27.69 1-3/4 1-7/8 41.15 38.86 55.12 77.22
SMC-24-24N 1-1/2 1-1/2 34.04 2-1/8 2-1/4 50.04 45.21 61.72 88.90
SMC-32-32N 2 2 45.97 2-3/4 3 67.56 62.74 76.20 113.54

Competitor Part Numbers

Superlok Swagelok SSP Duolok Parker
SMC-1-1N SS-100-1-1 ISSD1MCN1 1MSC1N-SS
SMC-1-2N SS-100-1-2 ISSD1MCN2 1MSC2N-SS
SMC-2-2N SS-200-1-2 ISSD2MCN2 2MSC2N-SS
SMC-2-4N SS-200-1-4 ISSD2MCN4 2MSC4N-SS
SMC-2-6N SS-200-1-6 ISSD2MCN6 2MSC6N-SS
SMC-2-8N SS-200-1-8 ISSD2MCN8 2MSC8N-SS
SMC-3-2N SS-300-1-2 ISSD3MCN2 3MSC2N-SS
SMC-3-4N SS-300-1-4 ISSD3MCN4 3MSC4N-SS
SMC-4-2N SS-400-1-2 ISSD4MCN2 4MSC2N-SS
SMC-4-4N SS-400-1-4 ISSD4MCN4 4MSC4N-SS
SMC-4-6N SS-400-1-6 ISSD4MCN6 4MSC6N-SS
SMC-4-8N SS-400-1-8 ISSD4MCN8 4MSC8N-SS
SMC-4-12N SS-400-1-12 ISSD4MCN12 4MSC12N-SS
SMC-5-2N SS-500-1-2 ISSD5MCN2 5MSC2N-SS
SMC-5-4N SS-500-1-4 ISSD5MCN4 5MSC4N-SS
SMC-5-6N SS-500-1-6 ISSD5MCN6 5MSC6N-SS
SMC-6-2N SS-600-1-2 ISSD6MCN2 6MSC2N-SS
SMC-6-4N SS-600-1-4 ISSD6MCN4 6MSC4N-SS
SMC-6-6N SS-600-1-6 ISSD6MCN6 6MSC6N-SS
SMC-6-8N SS-600-1-8 ISSD6MCN8 6MSC8N-SS
SMC-6-12N SS-600-1-12 ISSD6MCN12 6MSC12N-SS
SMC-8-2N SS-810-1-2 ISSD8MCN2 8MSC2N-SS
SMC-8-4N SS-810-1-4 ISSD8MCN4 8MSC4N-SS
SMC-8-6N SS-810-1-6 ISSD8MCN6 8MSC6N-SS
SMC-8-8N SS-810-1-8 ISSD8MCN8 8MSC8N-SS
SMC-8-12N SS-810-1-12 ISSD8MCN12 8MSC12N-SS
SMC-8-16N SS-810-1-16 ISSD8MCN16 8MSC16N-SS
SMC-10-6N SS-1010-1-6 ISSD10MCN6 10MSC6N-SS
SMC-10-8N SS-1010-1-8 ISSD10MCN8 10MSC8N-SS
SMC-10-12N SS-1010-1-12 ISSD10MCN12 10MSC12N-SS
SMC-12-8N SS-1210-1-8 ISSD12MCN8 12MSC8N-SS
SMC-12-12N SS-1210-1-12 ISSD12MCN12 12MSC12N-SS
SMC-12-16N SS-1210-1-16 ISSD12MCN16 12MSC16N-SS
SMC-14-12N SS-1410-1-12 ISSD14MCN12 14MSC12N-SS
SMC-14-16N SS-1410-1-16 ISSD14MCN16 14MSC16N-SS
SMC-16-8N SS-1610-1-8 ISSD16MCN8 16MSC8N-SS
SMC-16-12N SS-1610-1-12 ISSD16MCN12 16MSC12N-SS
SMC-16-16N SS-1610-1-16 ISSD16MCN16 16MSC16N-SS
SMC-20-16N SS-2000-1-16 ISSD20MCN16 20MSC16N-SS
SMC-20-20N SS-2000-1-20 ISSD20MCN20 20MSC20N-SS
SMC-24-24N SS-2400-1-24 ISSD24MCN24 24MSC24N-SS
SMC-32-32N SS-3200-1-32 ISSD32MCN32 32MSC32N-SS
