Bulkhead Compression Tube x Female NPT
- Bulkhead Compression Tube x Female NPT Fitting Adapter
- Applications: Compression, Cryogenic, Gas, Instrumentation, Vacuum
- Available in 316 Stainless Steel

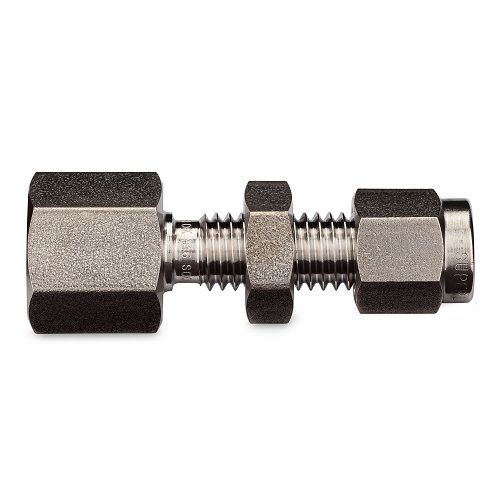

Bulkhead Compression Tube by Female NPT Adapter
Bulkhead fittings are designed to allow connections through holding tanks for transfer or drainage purposes. SUPERLOK Tube fittings are designed and manufactured to be interchangeable with other Tube Fittings manufactured by other industry leading manufacturers. When required compatibility testing can be performed by an independent third party and the reports can be provided.

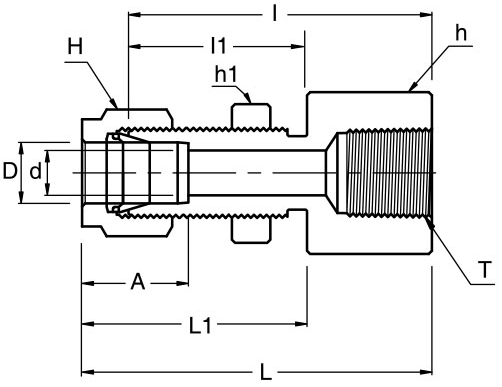

Bulkhead Compression Tube x Female NPT Fitting Dimensions
| Part No. | Tube OD D
(inches) |
T
(NPT) |
d Min
(mm) |
Width Across Flat | A | I | I1 | L | L1 | Panel Hole Drill Size | Panel Max. Thickness | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h (inch) | h1 (inch) | H (inch) | |||||||||||
| SFCB-2-2N | 1/8 | 1/8 | 2.28 | 9/16 | 1/2 | 7/16 | 12.70 | 38.10 | 24.63 | 44.70 | 31.24 | 8.33 | 12.70 |
| SFCB-4-2N | 1/4 | 1/8 | 4.82 | 5/8 | 5/8 | 9/16 | 15.24 | 39.62 | 26.16 | 46.99 | 33.52 | 11.50 | 10.16 |
| SFCB-4-4N | 1/4 | 1/4 | 4.82 | 3/4 | 5/8 | 9/16 | 15.24 | 44.45 | 26.16 | 51.81 | 33.52 | 11.50 | 10.16 |
| SFCB-6-4N | 3/8 | 1/4 | 7.11 | 3/4 | 3/4 | 11/16 | 16.76 | 47.75 | 29.46 | 55.11 | 36.83 | 14.68 | 11.17 |
| SFCB-8-6N | 1/2 | 3/8 | 10.41 | 15/16 | 15/16 | 7/8 | 22.86 | 51.56 | 31.75 | 61.72 | 41.91 | 19.44 | 12.70 |
| SFCB-8-8N | 1/2 | 1/2 | 10.41 | 1-1/16 | 15/16 | 7/8 | 22.86 | 56.38 | 31.75 | 66.54 | 41.91 | 19.44 | 12.70 |
| SFCB-12-12N | 3/4 | 3/4 | 15.74 | 1-1/4 | 1-3/16 | 1-1/8 | 24.38 | 63.60 | 37.33 | 73.51 | 47.49 | 25.79 | 16.76 |
