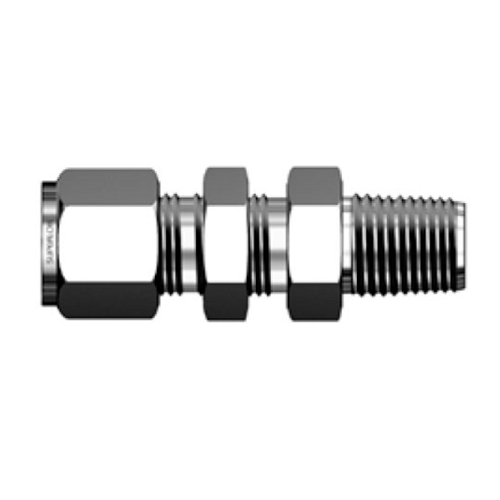

Bulkhead Compression Tube x Male NPT (SBMC)
- Bulkhead Compression Tube x Male NPT Fitting Adapter
- Applications: Compression, Cryogenic, Gas, Instrumentation, Vacuum
- Available in 316 Stainless Steel
Bulkhead Compression Tube by Male NPT Adapter (SBMC)
Bulkhead fittings are designed to allow connections through holding tanks for transfer or drainage purposes. SUPERLOK Tube fittings are designed and manufactured to be interchangeable with other Tube Fittings manufactured by other industry leading manufacturers. When required compatibility testing can be performed by an independent third party and the reports can be provided.

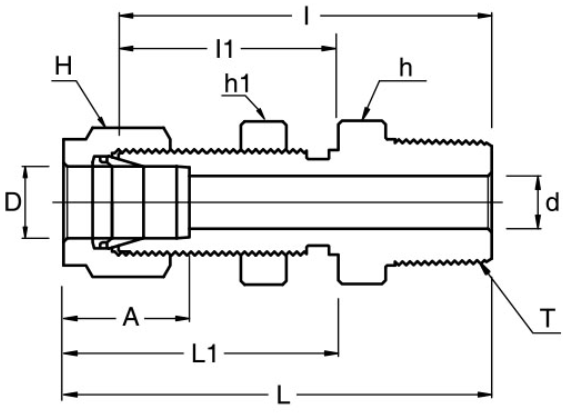

Bulkhead Compression Tube x Male NPT Fitting Dimensions
| Part No. | Tube OD D
(inches) |
T
(NPT) |
d Min
(mm) |
Width Across Flat | A | I | I1 | L | L1 | Panel Hole Drill Size | Panel Max. Thickness | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| h (inch) | h1 (inch) | H (inch) | |||||||||||
| SBMC-2-2N | 1/8 | 1/8 | 2.28 | 1/2 | 1/2 | 7/16 | 12.70 | 39.87 | 24.63 | 46.48 | 31.24 | 8.33 | 12.70 |
| SBMC-4-2N | 1/4 | 1/8 | 4.82 | 5/8 | 5/8 | 9/16 | 15.24 | 42.16 | 26.16 | 49.53 | 33.52 | 11.50 | 10.16 |
| SBMC-4-4N | 1/4 | 1/4 | 4.82 | 5/8 | 5/8 | 9/16 | 15.24 | 46.73 | 26.16 | 54.10 | 33.52 | 11.50 | 10.16 |
| SBMC-6-4N | 3/8 | 1/4 | 7.11 | 3/4 | 3/4 | 11/16 | 16.76 | 50.03 | 29.46 | 57.40 | 36.83 | 14.68 | 11.17 |
| SBMC-6-6N | 3/8 | 3/8 | 7.11 | 3/4 | 3/4 | 11/16 | 16.76 | 50.03 | 29.46 | 57.40 | 36.83 | 14.68 | 11.17 |
| SBMC-6-8N | 3/8 | 1/2 | 7.11 | 7/8 | 3/4 | 11/16 | 16.76 | 56.38 | 29.46 | 63.75 | 36.83 | 14.68 | 11.17 |
| SBMC-8-6N | 1/2 | 3/8 | 9.65 | 15/16 | 15/16 | 7/8 | 22.86 | 53.08 | 31.75 | 63.24 | 41.91 | 19.44 | 12.70 |
| SBMC-8-8N | 1/2 | 1/2 | 10.41 | 15/16 | 15/16 | 7/8 | 22.86 | 58.67 | 31.75 | 68.83 | 41.91 | 19.44 | 12.70 |
| SBMC-12-12N | 3/4 | 3/4 | 15.74 | 1-3/16 | 1-3/16 | 1-1/8 | 24.38 | 66.04 | 37.33 | 76.20 | 47.49 | 25.79 | 16.76 |
| SBMC-16-16N | 1 | 1 | 22.35 | 1-5/8 | 1-5/8 | 1-1/2 | 31.24 | 81.02 | 45.21 | 93.21 | 57.40 | 33.73 | 19.05 |
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| SBMC-12-12N-S316 | Bulkhead 3/4″ Compression Tube x 3/4″ Male NPT |
Request Line Drawing |
| SBMC-2-2N-S316 | Bulkhead 1/8″ Compression Tube x 1/8″ Male NPT |
Request Line Drawing |
| SBMC-4-2N-S316 | Bulkhead 1/4″ Compression Tube x 1/8″ Male NPT |
Request Line Drawing |
| SBMC-4-4N-S316 | Bulkhead 1/4″ Compression Tube x 1/4″ Male NPT |
Request Line Drawing |
| SBMC-4-6N-S316 | Bulkhead 1/4″ Compression Tube x 3/8″ Male NPT |
Request Line Drawing |
| SBMC-4-8N-S316 | Bulkhead 1/4″ Compression Tube x 1/2″ Male NPT |
Request Line Drawing |
| SBMC-6-4N-S316 | Bulkhead 3/8″ Compression Tube x 1/4″ Male NPT |
Request Line Drawing |
| SBMC-6-6N-S316 | Bulkhead 3/8″ Compression Tube x 3/8″ Male NPT |
Request Line Drawing |
| SBMC-6-8N-S316 | Bulkhead 3/8″ Compression Tube x 1/2″ Male NPT |
Request Line Drawing |
| SBMC-8-6N-S316 | Bulkhead 1/2″ Compression Tube x 3/8″ Male NPT |
Request Line Drawing |
| SBMC-8-8N-S316 | Bulkhead 1/2″ Compression Tube x 1/2″ Male NPT |
Request Line Drawing |
| SBMC16-16N-S316 | Bulkhead 1″ Compression Tube x 1″ Male NPT |
Request Line Drawing |
