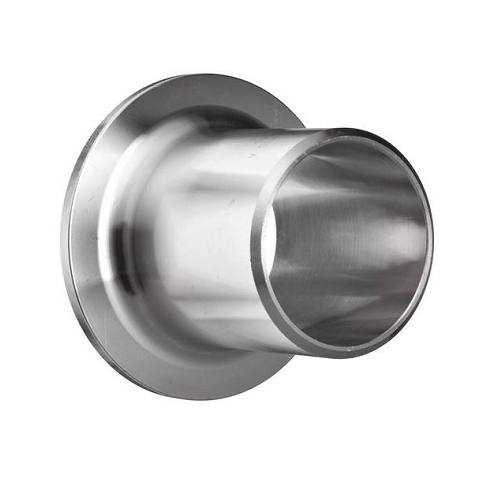

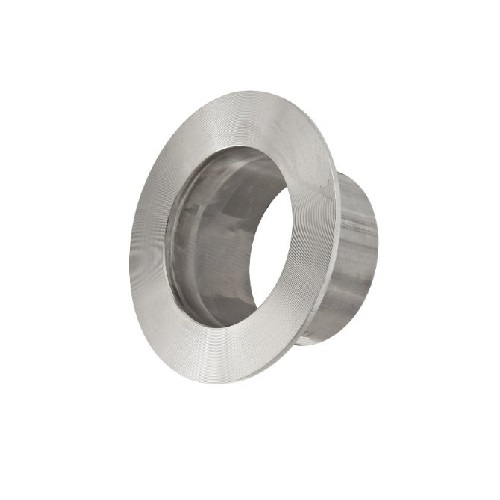

Type A (VB) Polished Stub Ends (14VB)
- Compatible with 1/2″ Thick Tube (38SL) Flanges
Type A (VB) Stub Ends
Additional information
Line Drawings
| SKU | Description | Line Drawing |
|---|---|---|
| 14VB-.50-7-316 | 1/2″ 14VB Stub End T316L |
Request Line Drawing |
| 14VB-.75-7-316 | 3/4″ 14VB Stub End T316L |
Request Line Drawing |
| 14VB-1-7-316 | 1″ 14VB Stub End T316L |
|
| 14VB-1.5-7-304 | 1-1/2″ 14VB Stub End 304 |
Request Line Drawing |
| 14VB-1.5-7-316 | 1-1/2″ 14VB Stub End T316L |
Request Line Drawing |
| 14VB-2-7-304 | 2″ 14VB Stub End 304 |
|
| 14VB-2-7-316 | 2″ 14VB Stub End T316L |
|
| 14VB-2.5-7-316 | 2-1/2″ 14VB Stub End T316L |
|
| 14VB-3-7-304 | 3″ 14VB Stub End 304 |
Request Line Drawing |
| 14VB-3-7-316 | 3″ 14VB Stub End T316L |
Request Line Drawing |
| 14VB-4-7-304 | 4″ 14VB Stub End 304 |
Request Line Drawing |
| 14VB-4-7-316 | 4″ 14VB Stub End T316L |
|
| 14VB-6-7-316 | 6″ 14VB Stub End T316L |
|
| 14VB-8-7-316 | 8″ 14VB Stub End T316L |
Request Line Drawing |
-
I’m looking to see if you have the following fitting available: 14VB6-1200
-
Q I’m looking to see if you have the following fitting available: 14VB6-1200A I'm sorry but we do not have a 12" version of the Stub End. Depending upon your needs a possible alternative may be our 1/2" Thick Tube Flange which does come in a 12" diameter. I hope this helps.
