TOP-FLO® is a proven name in the sanitary process equipment industry with a reputation built on quality and durability. In simple terms, TOP-FLO® is a brand you can trust to perform.
The “TOP-FLO® Ready-To-Go” program pairs the trusted performance you’ve come to expect with the speed that you need. Top-selling TOP-FLO® models are always in stock and ready-to-go from Steel & O’Brien’s Arcade, NY headquarters in just one business day or less.*
Top Products & Categories with a 1-Day Turnaround
The following products are included in the “TOP-FLO® Ready-To-Go” program
TOP-FLO® Centrifugal Pump & Motor Assemblies
TOP-FLO® pumps are suitable for use in CIP (clean-in-place) installations with no dismantling or takedown. Sanitizing of all product contact areas is automatic.
TOP-FLO® Centrifugal Pumps
TOP-FLO® pumps are designed to efficiently transfer product over a wide range of head and viscosity conditions.
TOP-FLO® BIOPRO® Forged Diaphragm Valves
TOP-FLO® diaphragm valves, because of their unique design, reliability, versatility, and ease of maintenance are the ideal choice for high purity process piping applications.

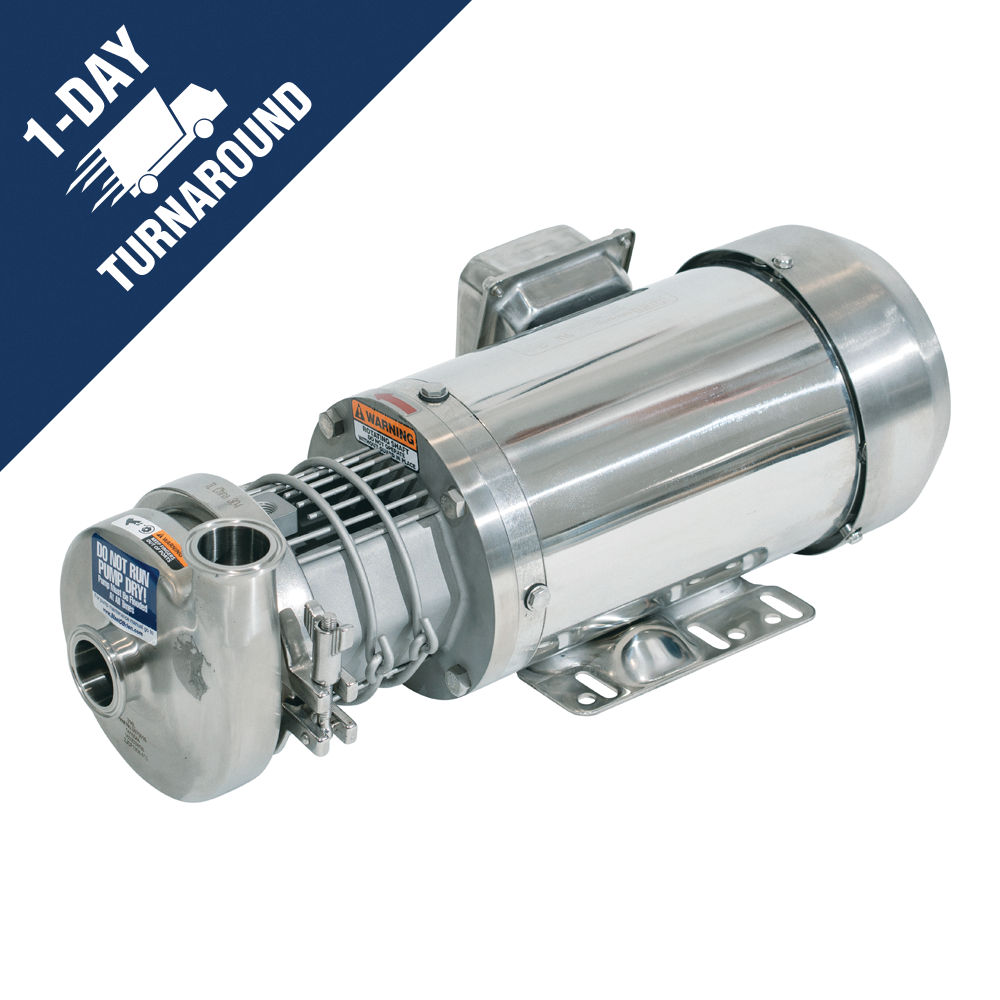

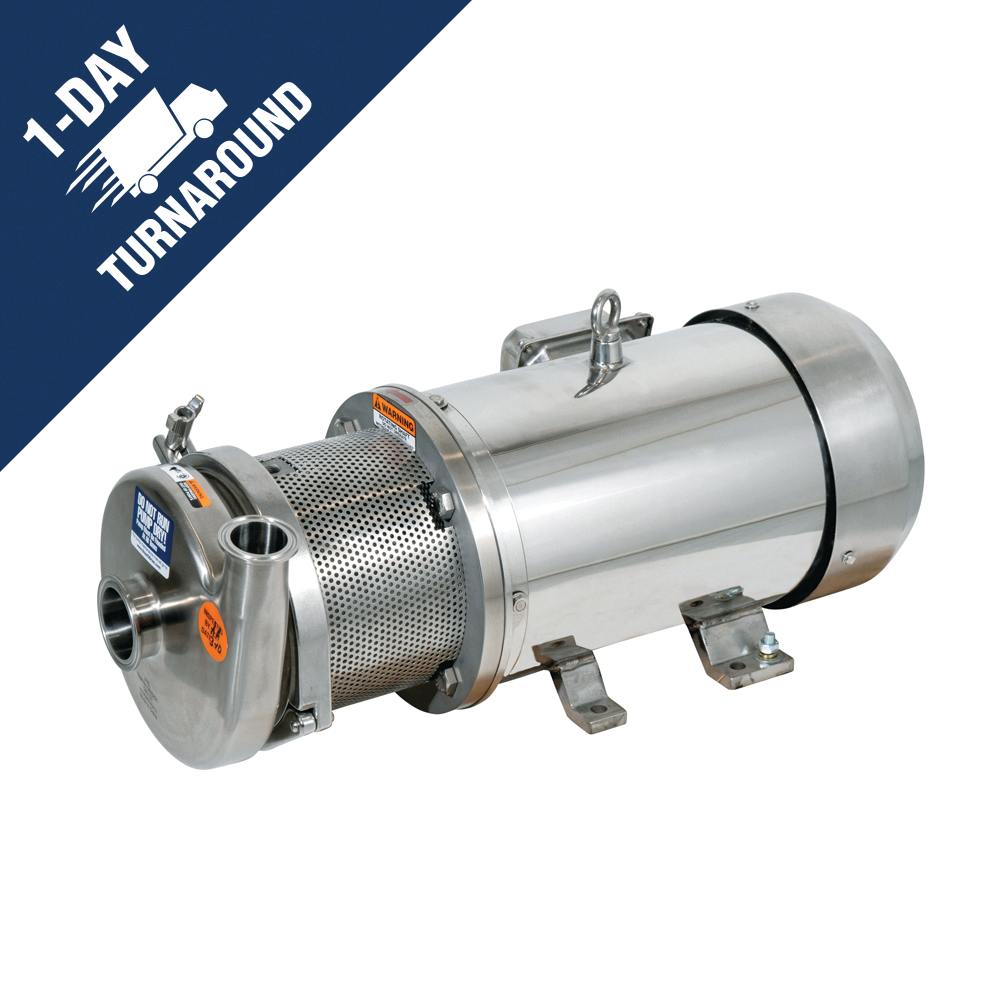

TOP-FLO® Centrifugal Pump & Motor Assemblies
Pump & Motor Assemblies are now included in the “TOP-FLO® Ready-To-Go” program
In stock and ready-to-go in just one business day or less, standard pump and motor offerings range from 0.5HP to 10HP, based upon flow requirements.
Pump Features
- Volute type pump casing
- Sanitary clamp inlet and outlet connections
- Polished to 32Ra
- 3A certified
Motor Features
- Stainless steel washdown motor
- 0.5HP to 10HP NEMA premium
- 1800RPM and 3600RPM speeds available
- TENV (0.5HP) and TEFC enclosure types
- Meets IP56 enclosure protection
- Class F epoxy insulation
Custom configurations are available, contact our sales team for more information.

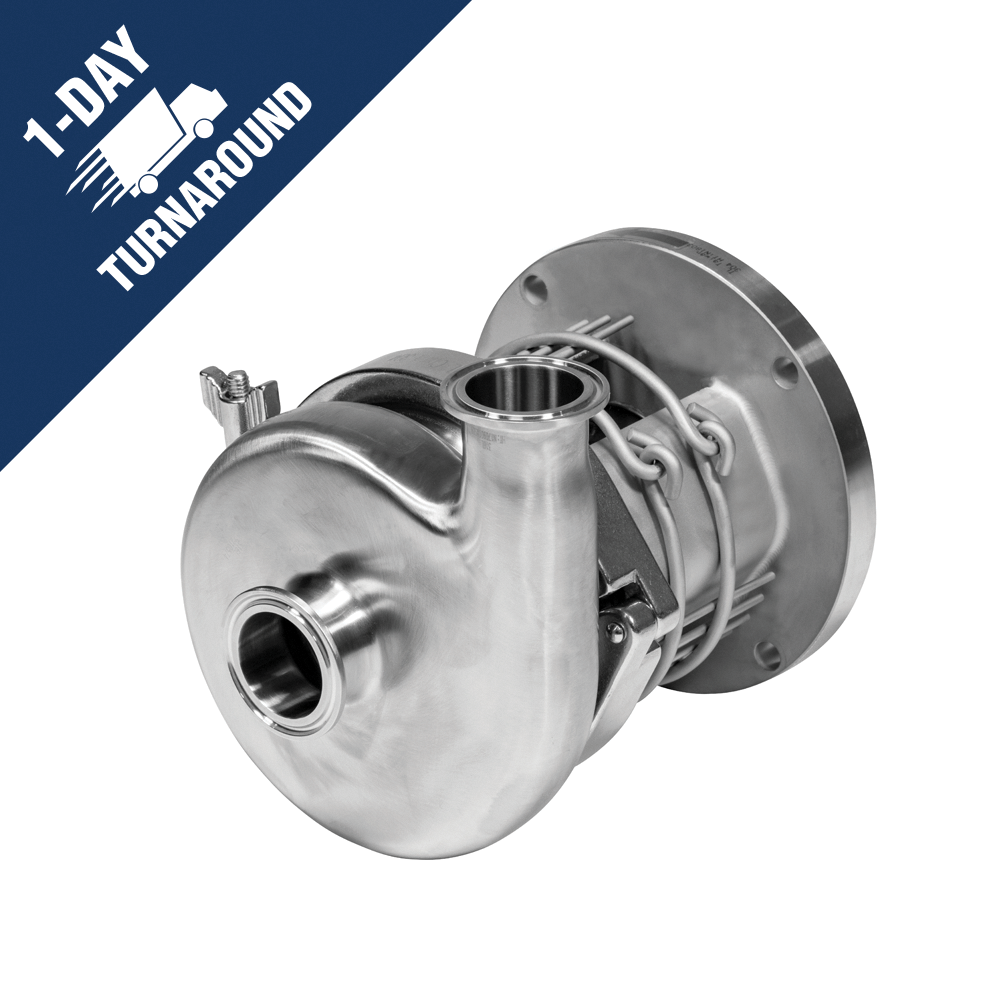

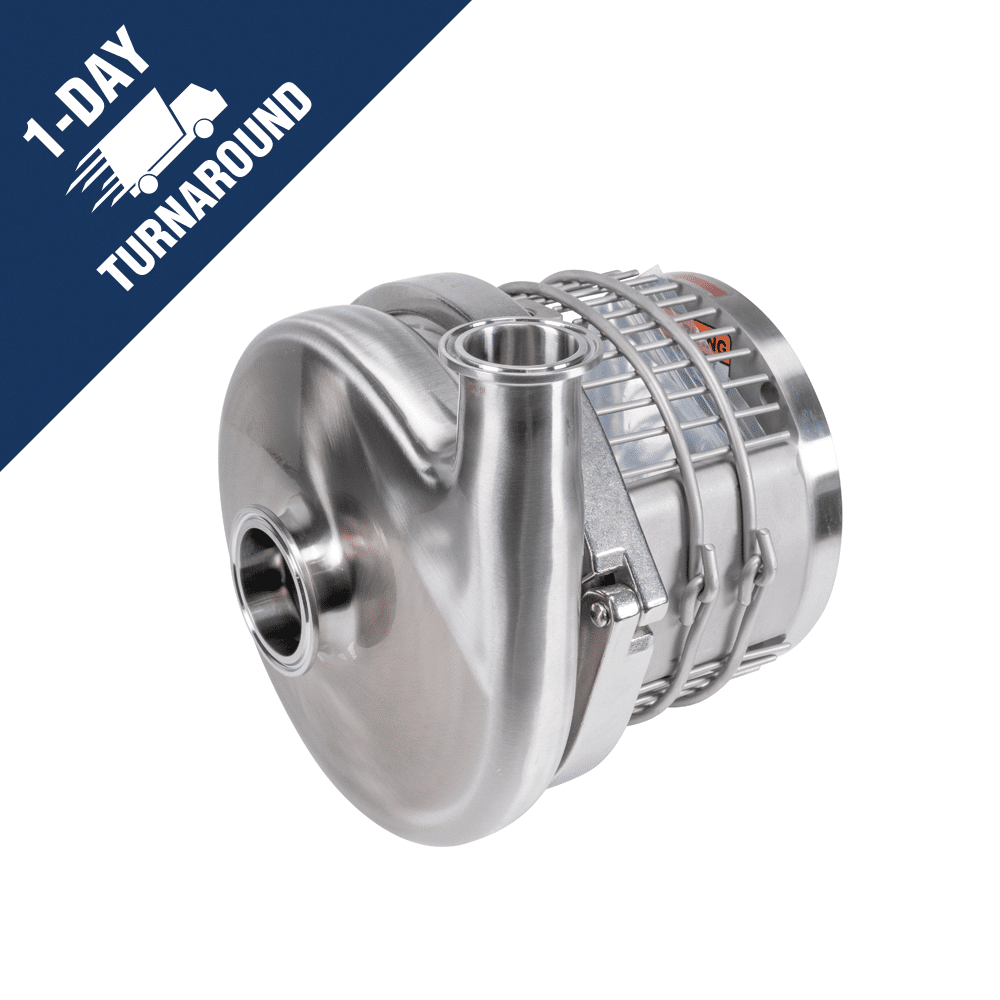

TOP-FLO® Centrifugal Pumps
Available TOP-FLO® Pumps:
C100 Pumps
C114 Pumps
C216 Pumps
C218 Pumps
C328 Pumps
The TOP-FLO® name represents the finest in sanitary process equipment. TOP-FLO® pumps have been designed to offer an efficient transfer of product over a wide range of head and viscosity conditions. TOP-FLO® pumps are easy to install, clean, and operate.
TOP-FLO® Pump Features
- Volute type pump casing
- Sanitary clamp inlet and outlet connections
- Suitable for use in CIP (clean-in-place) installations
- Gaskets/O-rings are Buna or FKM
- Polished to 32Ra
- 3A certified
All pumps are available in standard inlet and outlet sizes. Enlarged inlet sizes are available for special applications, contact our sales team for more information.

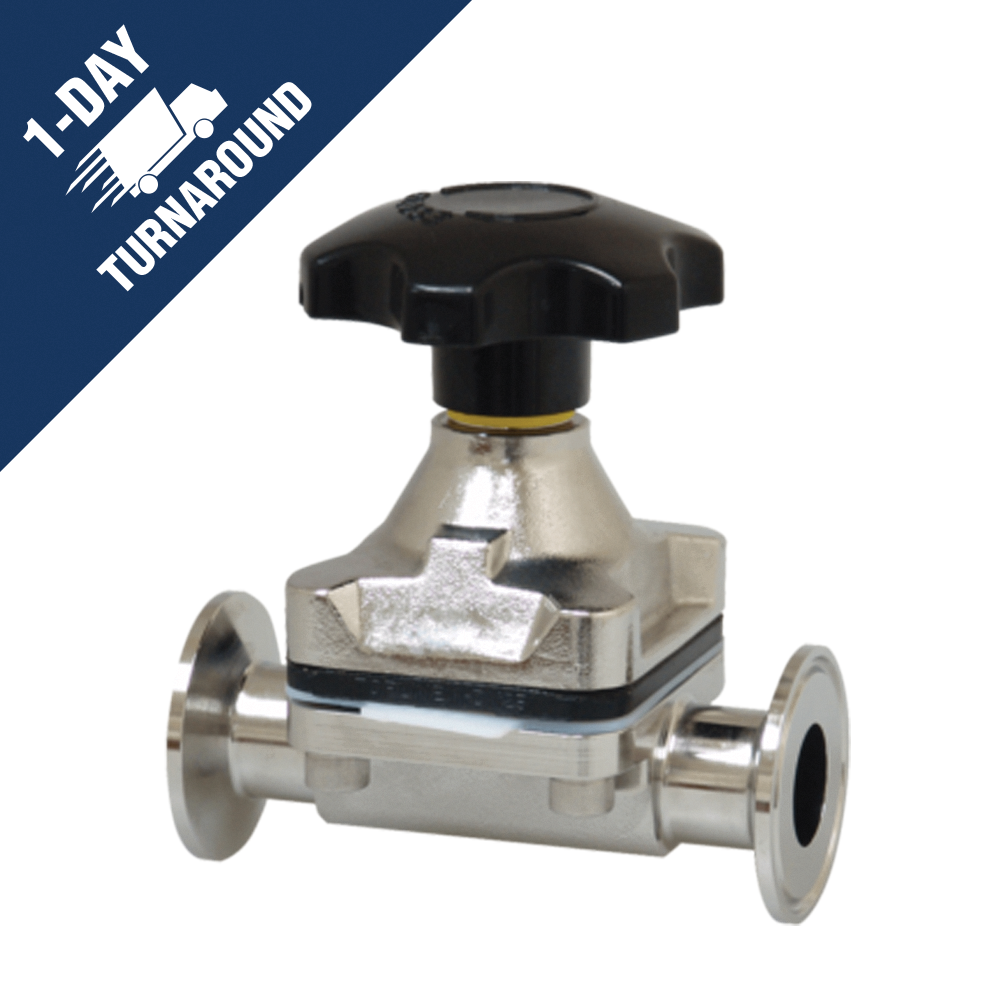

TOP-FLO® BIOPRO® Forged Diaphragm Valves
The forged body has always been the optimum choice for applications within the bioprocessing and pharmaceutical industries. BIOPRO® forged body diaphragm valves are the valves of choice when high-purity mechanical and electropolished surface finishes are required.
BIOPRO® Valve Features
- Low ferrite DIN 1.4435 316L forged body sizes 1/4″-4″ with controlled sulfur content to BPE 2019 0.005-0.017 with 3.1 Material Certification
- Autoclaveable FKM o-ring sealed 304SS stainless steel manual bonnet with PPS thermoplastic handwheel
- FDA and USP Class VI (Sections 87 & 88) conforming steam grade EPDM, MPTFE/EPDM, and MPTFE/FKM backed diaphragms
- 100% BPE compliant
- Full material traceability

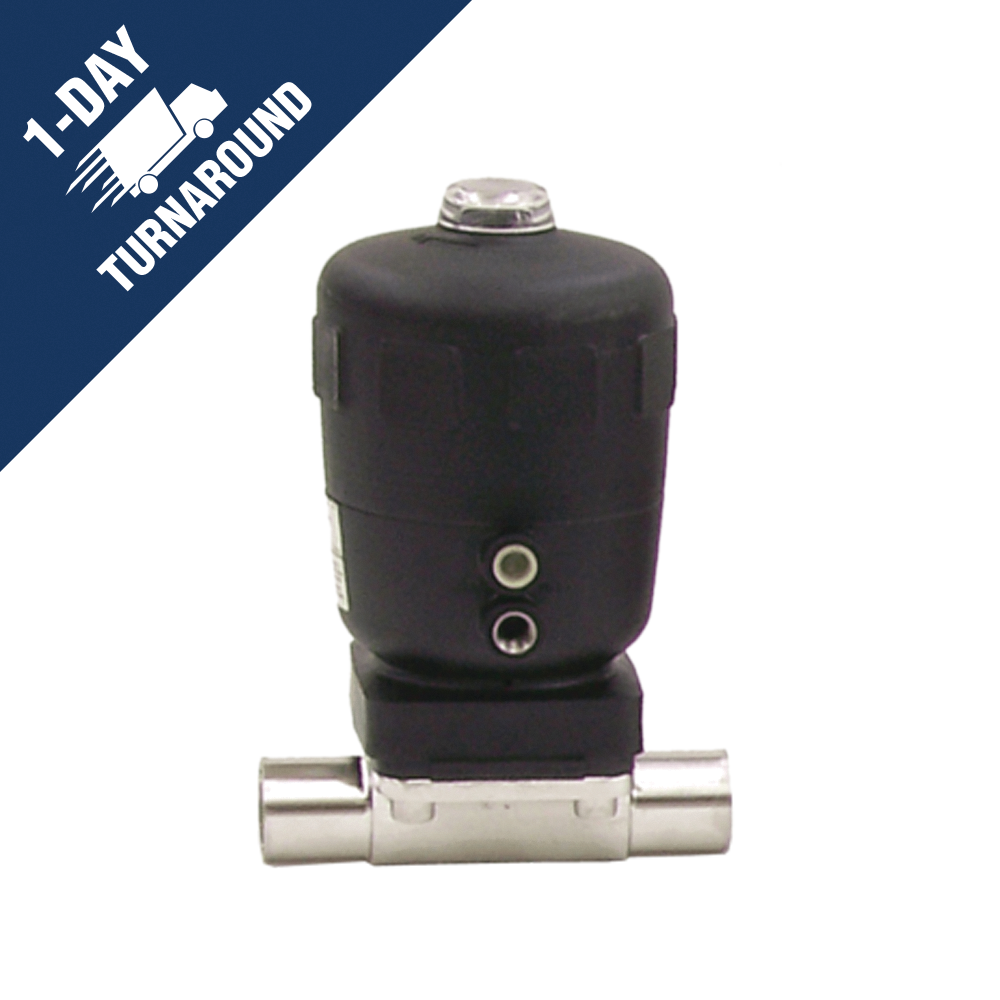

TOP-FLO® EZ Series Actuators
Diaphragm actuator valves are used to control flow rates to exact specified levels via air-flow. Actuator valves have a factory-set option of either fully closed or fully open. When air pressure is applied to the valve via the NPT port connection, the valve will open up.
EZ Series Actuator Valve Features
- Manufactured from ASTM A182 GR F316L
- Air supply connection: ¼ FNPT
- Polished to 20Ra (SF1)
- 100% BPE compliant
*Extremely large or custom orders may require additional time to fulfill.
